Deck-Mounted Coolant Tank
72-inch mobile cart with a 29-US-gallon (109-litre) stainless steel coolant tank. The cited sheet lists a 10-GPM, 50-PSI pump with a 2-hp motor.
Electro Arc / Product RangePORTABLE METAL DISINTEGRATION
Electro Arc Bolt Eater
Electro Arc Bolt Eater is a portable metal-disintegration system designed for removing large broken or seized bolts, studs, HSS tools, carbide tooling and other difficult metallic obstructions.
Product Information
Technical Specifications
| Removal range | Bolts and tooling from 1/2 inch (12.7 mm) and larger. |
|---|---|
| Operating head | Manual or servo-controlled operation; head can operate in different positions. |
| Continuous feed | 12 inches (305 mm), with an adjustable depth stop. |
| Power supply options | 240 / 380 / 480 V input options listed in the manufacturer specification. |
| Head and ground cables | 20 feet (6 m), as listed in the specification. |
| Remote control | Optional full-function remote control; confirm the offered configuration. |
| Approximate net weight | 1,200 lb (544 kg), as listed in the specification. |
Figures are taken from the manufacturer’s V0920 specification sheet. Confirm the current configuration, input supply and accessories with ARZEN before selection.
Configuration
Two Documented Configurations
Tool Cabinet & Side Tank
72-inch mobile cart with a lockable tool cabinet and side-mounted 13-US-gallon (49-litre) coolant tank. The cited sheet lists a 10-GPM pump with a 1.5-hp motor.
Supporting Component

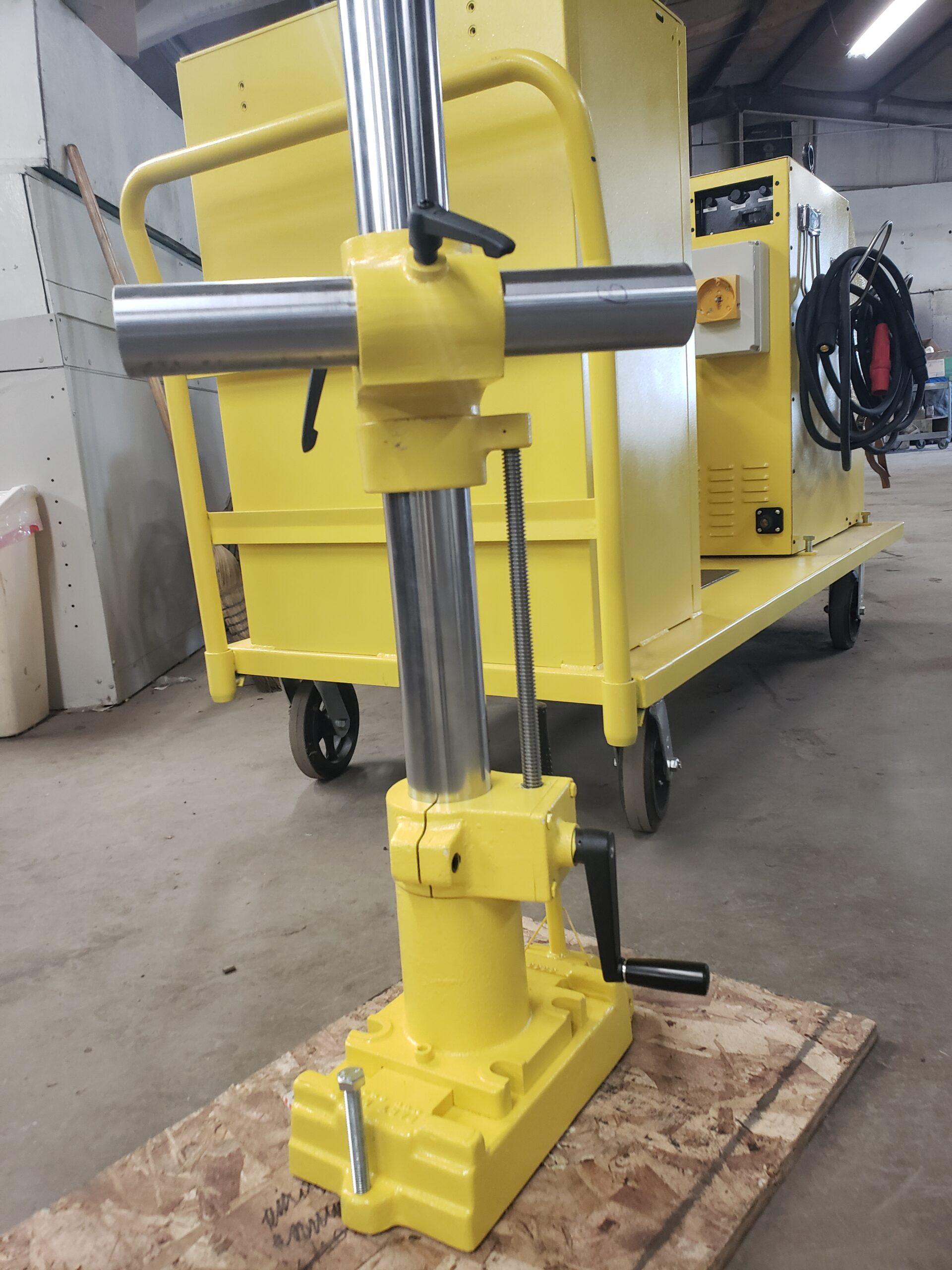

Operating Head & Servo Feed
Precision disintegrating head capable of operating in different positions with manual or servo-controlled operation.
Supporting Component
Support Fixture
Adjustable support arrangement with magnetic-base positioning for appropriate ferrous work surfaces.
Supporting Component
Power Supply
Bolt Eater power and control system, with available input configurations depending on machine specification.
Supporting Component
Coolant System
Integrated coolant arrangement supporting the metal-disintegration process.
Supporting Component
Remote Control
Optional full-function remote control for machine operation.
Supporting Component
Electrodes, Tooling & Accessories
Consumables and supporting accessories for different removal requirements.
Technical Resources
Technical Resources
PDFBolt Eater Specification SheetMachine configuration, power supply, operating head and coolant information. Manufacturer sheet V0920.Download PDFPDFBolt Eater How-to GuideManufacturer illustrated removal examples and application guidance.Download PDFPDFBolt Eater Selector ChartElectrode sizes, materials and manufacturer operating recommendations.Download PDF
Is Bolt Eater Right for Your Job?
Send ARZEN the:
- Bolt/stud diameter
- Approximate depth
- Material
- Equipment/component
- Access conditions
- Photos of the damaged fastener
We can review the application before recommending the appropriate approach.
