Portable metal disintegrator
Electro Arc Bolt Eater
Portable metal disintegrator designed for large broken and seized bolt, stud and tooling removal.
View product →All brands
PORTABLE METAL DISINTEGRATIONBig Broken Bolt?
Big Broken Bolt?
Bring in the Bolt Eater.

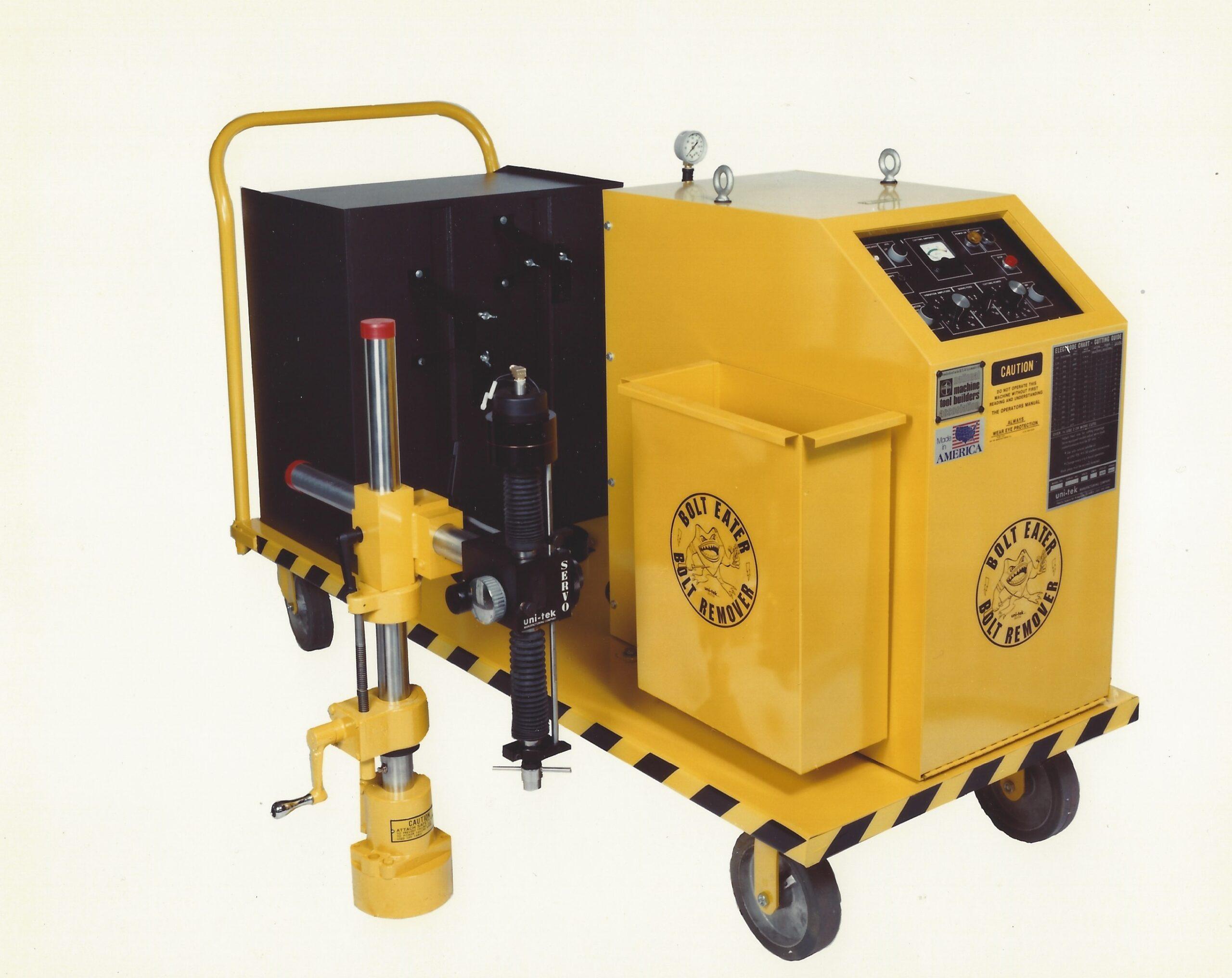

Electro Arc Bolt Eater is a portable metal-disintegration system designed for removing large broken or seized bolts, studs, HSS tools, carbide tooling and other difficult metallic obstructions.
Designed to take the equipment to the repair rather than the repair to the machine shop, Bolt Eater provides a specialised solution for demanding maintenance and extraction work.
Large Bolt RemovalDesigned for broken and seized bolts and tooling from 1/2 inch and larger.
Portable OperationMobile system designed to be taken to the equipment requiring repair.
Precision ControlServo-controlled disintegrating head with controlled feed.
Difficult Material CapabilityCapable of disintegrating HSS, carbide tooling, drill bits and large metallic fasteners.
Overview
When Conventional Removal Becomes the Problem
Broken and seized bolts can turn a maintenance job into extended downtime, particularly when drilling, torching or conventional extraction methods are impractical or risk damaging the surrounding component.
The Electro Arc Bolt Eater uses metal-disintegration technology to remove unwanted conductive material through controlled electrical arcs.
Its portable configuration allows the system to be positioned at large equipment and difficult repair locations, making it particularly relevant for turbines, heavy machinery, large studs, drilling equipment and critical plant maintenance.
Is Bolt Eater Right for Your Job?
Send ARZEN the:
- Bolt/stud diameter
- Approximate depth
- Material
- Equipment/component
- Access conditions
- Photos of the damaged fastener
We can review the application before recommending the appropriate approach.
Send Us Your Bolt Removal Challenge →Product Range
Bolt Eater & Supporting Components
Operating Head & Servo Feed
Precision disintegrating head capable of operating in different positions with manual or servo-controlled operation.
Explore component →Support Fixture
Adjustable support arrangement with magnetic-base positioning for appropriate ferrous work surfaces.
Explore component →Power Supply
Bolt Eater power and control system, with available input configurations depending on machine specification.
Explore component →Coolant System
Integrated coolant arrangement supporting the metal-disintegration process.
Explore component →Electrodes, Tooling & Accessories
Consumables and supporting accessories for different removal requirements.
Explore component →Electro Arc documents two Bolt Eater configurations incorporating the power supply, operating head, fixture, cables and mobile cart.
Application
Applications
Electro Arc specifically cites turbine bolts, drill-head cutting tips, steel-industry cutting jobs and large bolts in off-road equipment among Bolt Eater applications.
Industries
Industries
Technical Resources
Technical Resources
PDFBolt Eater Specification SheetMachine configuration, power supply, operating head and coolant information. Manufacturer sheet V0920.Download PDFPDFBolt Eater How-to GuideManufacturer illustrated removal examples and application guidance.Download PDFPDFBolt Eater Selector ChartElectrode sizes, materials and manufacturer operating recommendations.Download PDF
Case Studies
Manufacturer-sourced application references.
Seized Clevis-Pin RemovalElectro Arc · Download PDF ↗Broken Bolt Removal — Manufacturer ExamplesElectro Arc · Download PDF ↗
