Enhanced user-friendliness
Monitor nearby paired lubricators and change operating settings within close Bluetooth proximity.
Official manufacturer product visual · BT60Pulsarlube / Advanced Features
Pulsarlube BT
A Bluetooth-enabled automatic grease lubricator for nearby app-based monitoring, setting changes and maintenance-data management.
Series
BT60: Ø91mm (3.60") × 181mm (7.13") H
Product overview
Nearby Bluetooth access for safer, more convenient lubrication management.
Pulsarlube BT connects to the Pulsarlube mobile app through Bluetooth Low Energy. Within Bluetooth detection range, authorised users can identify paired lubricators, review operating status and change settings without physically reaching each unit.
The manufacturer states a 5–20m detection range depending on the installation environment. This is close-proximity Bluetooth control, not unrestricted long-range or internet control of the lubricator. App data can be shared with the associated server and exported for monitoring.

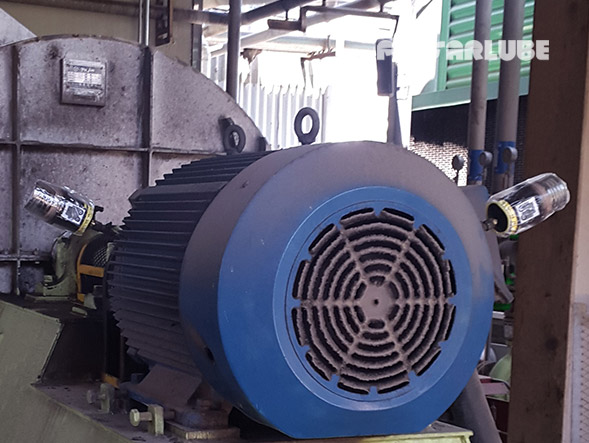

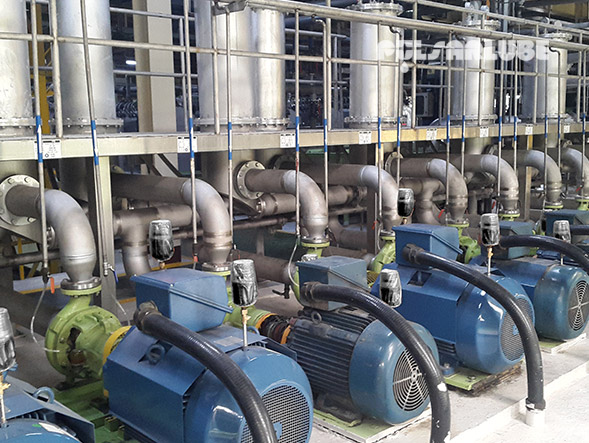

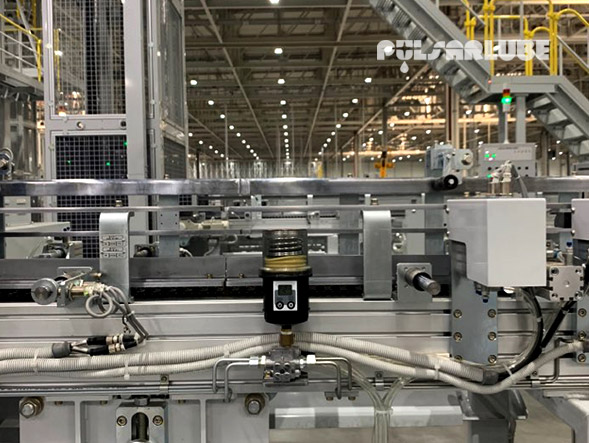

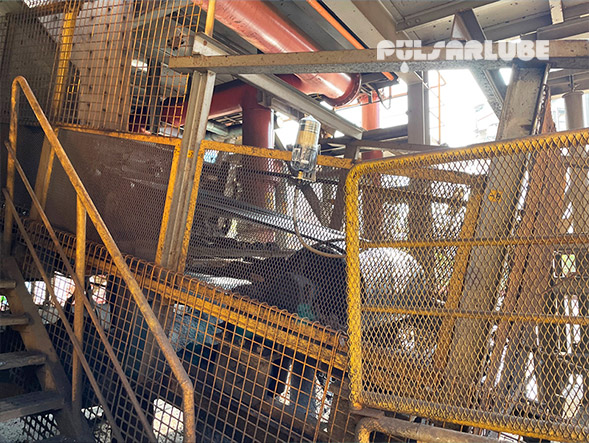

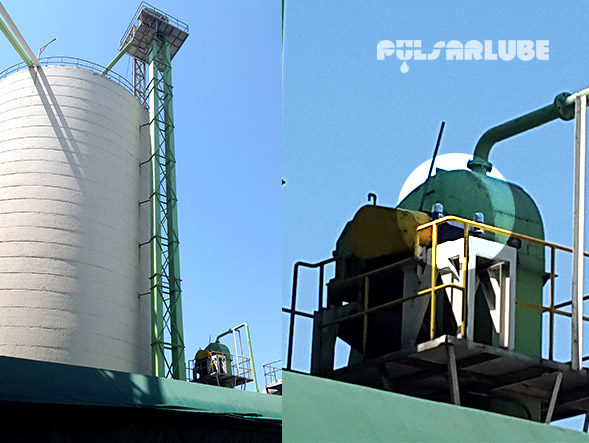

Industrial applications
Applications
Product advantages
Features
Integrated data management
Operational records can be shared between the mobile application and the associated database server.
Safer inspection access
Nearby app monitoring can reduce the need to physically reach lubricators in difficult or unsafe-access positions.
Replaceable Service Pack
Replaceable grease pouches and battery packs support reuse of the lubricator body.
Technical documentation
Product info
The live manufacturer page currently displays an EXP/EXPL-labelled image in the BT cross-section position. It is intentionally not reproduced here pending a verified BT-specific diagram.
Product specification
Specifications
| Spec | Description |
|---|---|
| Grease pouch capacity | 60ml / 120ml / 240ml (pre-set) |
| Power supply | DC 4.5V replaceable battery pack; alkaline standard, lithium optional |
| Operating pressure | 30–60bar (435–870psi) |
| Operating temperature | Alkaline battery: -15°C to 60°C (5°F to 140°F); lithium battery: -40°C to 60°C (-40°F to 140°F) |
| Dispensing periods | 1–12 months |
| Single-point remote installation | Maximum 6m (20ft) with O.D. Ø6 tube |
| Multi-point installation | Maximum 3m (10ft) per point with O.D. Ø6 tube; up to 8 lubrication points |
| Bluetooth detection range | 5–20m (16.4–65.6ft), depending on the installation environment |
| Bluetooth specification | Bluetooth 4.1, Class 2 |
| Connecting thread | PT 3/8" male |
| Ingress protection | IP65 |
| Packaging | 10 units per case |
Safety and compliance
Certifications
Certification information is shown for technical reference. Arzen must confirm the exact model, market and supporting certificate before supply.
| Certification | Manufacturer-stated marking |
|---|---|
| KC | R-RMM-kLT-BT240 |
| CE | Manufacturer lists CE conformity for the Pulsarlube BT range |
| FCC | 2APJH-BT240 |
| RCM | RCM-001311 |
| NCC | BT60: CCAH19LP0122T6; BT120: CCAH19LP0121T4; BT240: CCAH19LP0120T2 |
| SRRC | BT60: 2019DJ0846; BT120: 2019DJ0847; BT240: 2019DJ1090 |
| SIG | D042809 |
| ICASA | BTA-20195127 |
| J-MIC | 022-190186 |
| NBTC | TH_SDOC_BT60 / BT120 / BT240 |
| IP code | IP65 |
Reducer
| Part No. | Description |
|---|---|
| A001 | Reducer, 3/8"F x 1/4"M Adaptor (Brass) |
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| A002-S | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
Socket + Pipe + Reducer
| Part No. | Description |
|---|---|
| A011 | Socket, 1/4"F x 1/4"F Adaptor (Brass) |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (Brass) |
| A121 | Pipe, 1/4"M x 1/4"M x 50mm (Steel) |
| A122 | Pipe, 1/4"M x 1/4"M x 100mm (Steel) |
| A123 | Pipe, 1/4"M x 1/4"M x 150mm (Steel) |
| A124 | Pipe, 1/4"M x 1/4"M x 200mm (Steel) |
| A106 | Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel) |
| A107 | Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel) |
| A108 | Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel) |
| A109 | Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel) |
45° Elbow
| Part No. | Description |
|---|---|
| A023 | 45° Elbow, 1/4"M x 1/4"F Adaptor (Brass) |
| A024 | 45° Elbow, 1/8"M x 1/8"F Adaptor (Brass) |
90° Elbow
| Part No. | Description |
|---|---|
| A019 | 90° Elbow, 1/4"F x 1/4"F Adaptor (Brass) |
| A020 | 90° Elbow, 1/8"F x 1/8"F Adaptor (Brass) |
| A021 | 90° Elbow, 1/4"M x 1/4"F Adaptor (Brass) |
| A022 | 90° Elbow, 1/8"M x 1/8"F Adaptor (Brass) |
Single-point remote installation
Kit No. 1250RC-1
| Part No. | Description |
|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| B002 | Mounting Bracket, L-Shape |
| B051 | Self Drilling Screw, #8 x 20 |
| B057 | Washer |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (Brass) |
| A240 | Tube Fitting, Push-In Type, PC6-PT1/8"M |
| A214-1 | Distribution Tubing, O.D. 1/4" (6mm) Nylon Tubing, 10ft, pre-filled with compatible grease |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (Brass) |
The manufacturer lists a maximum 6m (20ft) remote run using O.D. Ø6 tubing. Prefill the tube with the same or a compatible grease, and confirm usable Bluetooth range at the installed location.
Multi-point installation
Electromechanical divider-block installation — up to 8 points
| Part No. | Description | Qty. |
|---|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) | 1 |
| B002 | Mounting Bracket, L-Shape | 1 |
| B051 | Self Drilling Screw, #8 x 20 | 1 |
| DU-2RS–DU-8RS | DU Type Divider Block, grease type, 2–8 ports | 1 |
| B058 | Tooth Washer | 2 |
| A240 | Tube Fitting, Push-In Type, PC6-PT1/8"M | 3 |
| A214-1 | Distribution Tubing, O.D. 1/4" (6mm) Nylon Tubing, 10ft, pre-filled with compatible grease | 1 |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (Brass) | 1 |
Use a compatible progressive divider block with no unused ports plugged. The manufacturer lists up to 8 lubrication points and a maximum 3m (10ft) line per point with O.D. Ø6 tubing; verify backpressure and nearby Bluetooth access before commissioning.
