Certified
Certified CE, ATEX, UL for use in hazardous areas
Official manufacturer product visual · V125Pulsarlube / Electrochemical
Pulsarlube V
The Pulsarlube V is an easy-to-program gas type lubricator which offers an informative LCD display.
Series
V125: Ø97mm(3.83") x 125mm(4.92") (H)
Quick download
Product overview
Automatic lubrication, precisely delivered.
The Pulsarlube V automatic grease lubricator operates based on the proven technology of electrochemical reaction which generates inert Nitrogen (N2) gas through the systematic use of an electrolyte and electrical energy.
It is designed to help users easily set the dispensing rate by use of the microprocessor and LCD. The Pulsarlube V controls the electrolytic reaction for the best dispensing rate and dispenses a precise certain amount of grease at the set rate, suitable for most industrial applications. This product is an intrinsically safe product, certified as Ex ia llC T4 for use in hazardous areas.

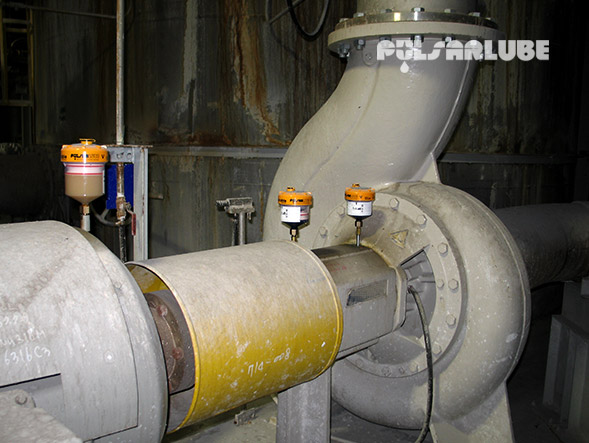

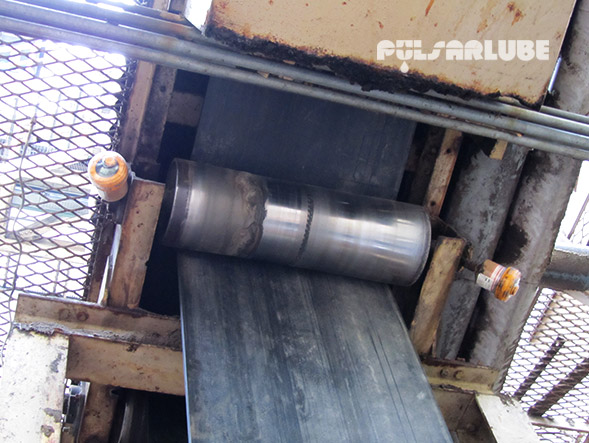

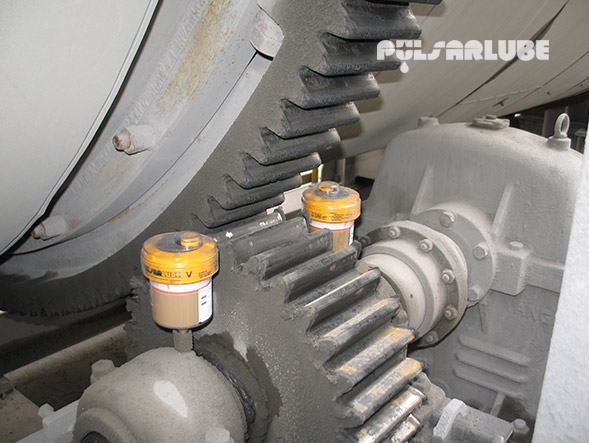

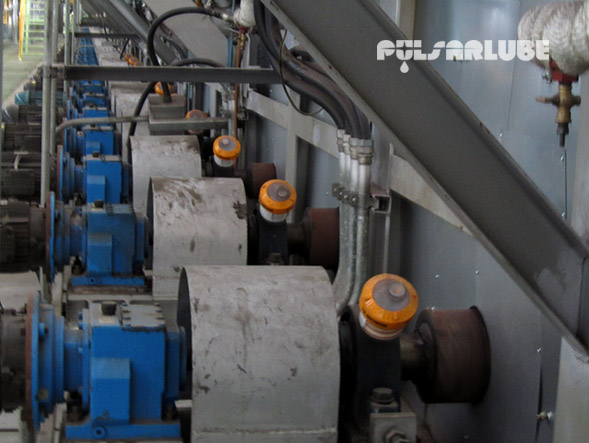

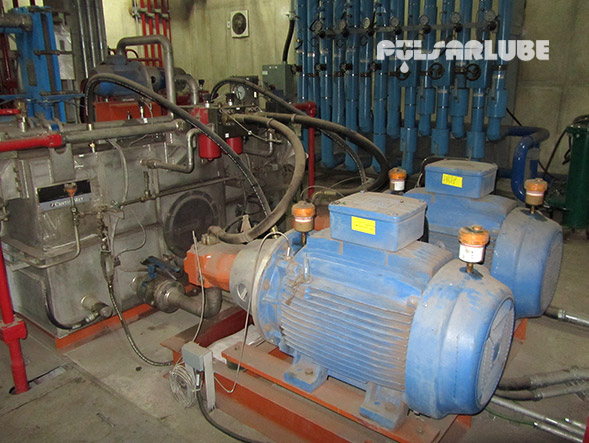

Industrial applications
Applications
Product advantages
Features
System
8-bit microprocessor controlled to ensure the most accurate dispensing rate
Easy
Easy to reprogram at any time with a press of a button
LCD
Easy to program with built-in LCD and simple button controls
Technical documentation
Product info
Internal construction
Cross section
Explore the manufacturer’s labelled internal components and lubricant-delivery construction.
Product specification
Specifications
| Spec | Description |
|---|---|
| Grease Pouch Capacity | 125ml/250ml (disposable) |
| Gas Type | Electrochemical reaction (Nitrogen gas) |
| Operating Pressure | Max. 5bar (73psi) |
| Operating Temperature | -20˚C~55˚C (-4˚F~131˚F) |
| Dispensing Periods | 1, 2, 3, 6, 12 month & Purge (P) |
| Remote Installation | Max. 1m (3.3ft) with O.D. Ø8 tube |
| Multi-Point Installation | N/A |
| Packaging | 10 Units/Case |
Safety and compliance
Certifications
| Certification | Description | Document |
|---|---|---|
| IP Code | IP68 | Download ↗ |
| ATEX | Ⅱ 1 G / ia Ⅱc T4 | Download ↗ |
| UL | Cl.Ⅰ, Div. 1, Gps A, B, C, D | Confirmation pending |
| IECEX | ia ⅡC T4 Ga | Download ↗ |
| KCs | ia ⅡC T4 | Download ↗ |
| MSHA | Approval No. 18-A180003-0 | Not supplied |
| CE / Etc. | CE 0344 | Not supplied |
Reducer
| Part No. | Description |
|---|---|
| A001 | Reducer, 3/8"F x 1/4"M Adaptor (Brass) |
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| A003 | Reducer, 3/8"F x 1/8"M Adaptor (Steel) |
Socket + Pipe + Reducer
| Part No. | Description |
|---|---|
| A011 | Socket, 1/4"F x 1/4"F Adaptor (Brass) |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (Brass) |
| A121 | Pipe,1/4”M x 1/4”M x 50mm (Steel) |
| A122 | Pipe,1/4”M x 1/4”M x 100mm (Steel) |
| A123 | Pipe,1/4”M x 1/4”M x 150mm (Steel) |
| A124 | Pipe,1/4”M x 1/4”M x 200mm (Steel) |
| A106 | Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel) |
| A107 | Pipe, 1/8"M x 1/8"M x 150mm for divider Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel) |
| A108 | Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel) |
| A109 | Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel) |
45° Elbow
| Part No. | Description |
|---|---|
| A023 | 45° Elbow, 1/4”M x 1/4”F Adaptor (Brass) |
| A024 | 45° Elbow, 1/8”M x 1/8”F Adaptor (Brass) |
90° Elbow
| Part No. | Description |
|---|---|
| A019 | 90° Elbow, 1/4”F x 1/4”F Adaptor (Brass) |
| A020 | 90° Elbow, 1/8”F x 1/8”F Adaptor (Brass) |
| A021 | 90° Elbow, 1/4”M x 1/4”F Adaptor (Brass) |
| A022 | 90° Elbow, 1/8”M x 1/8”F Adaptor (Brass) |
Single point remote installation
Kit No. 1000RC-1
| Part No. | Description | Qty. |
|---|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) | 1 |
| B002 | Mounting Bracket, “L”Shape | 1 |
| B057 | Washer | 1 |
| A012 | Socket, 1/8”F x 1/8”F Adaptor (Brass) | 1 |
| A239 | Tube Fitting, Push-In Type, PC8-PT1/8"M | 2 |
| B051 | Self Drilling Screw, #8 x 20 | 3 |
| A212-1 | Distribution Tubing, O.D. 5/16"(8mm) Urethan Tubing, 3ft Pre-filled with (Grease Type) | 1 |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (Brass) | 1 |
For remote installation using a tube, use an 8mm O.D. (5/16″) tubing pre-filled with the same or compatible grease as the grease contained in the unit. Recommend using under short dispensing period settings due to powerful dispensing pressure.
Related solutions
Back to catalogue →Continue product discovery.
ElectrochemicalProduct enquiry
Request a Pulsarlube V quotation.
Share the required model, quantity, application, operating temperature and installation conditions to begin a technical discussion.
Pulsarlube VElectrochemical
Available models: V125 · V250
Start your enquiry →View manufacturer product information ↗
