10bar operating pressure
The stated output pressure is up to 10bar, depending on the selected oil viscosity and installation conditions.
Official manufacturer product visual · OL500Pulsarlube / Oiler
Pulsarlube OL500
A reusable 500ml electromechanical automatic oiler for precise, programmable oil delivery through single-point or engineered multi-point installations.
Series
OL500: Ø94mm (3.70") × 229mm (9.02") H
Quick download
Product overview
Refillable, programmable oil lubrication up to four points.
Pulsarlube OL500 combines a vertical self-priming pump, microprocessor control, LCD interface, transparent refillable oil reservoir and replaceable battery pack. The manufacturer states that the battery pack must be replaced after each completed dispensing period.
The unit can serve one point remotely or up to four points with the appropriate oil-lubrication installation kit. Oil grade, viscosity, ambient temperature, tube length, elevation and line resistance must be confirmed together before installation.

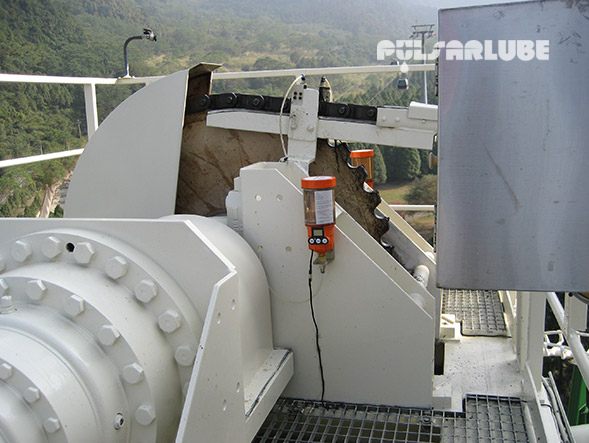

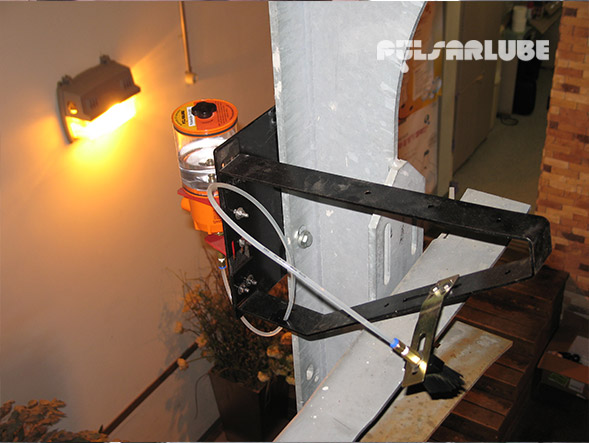

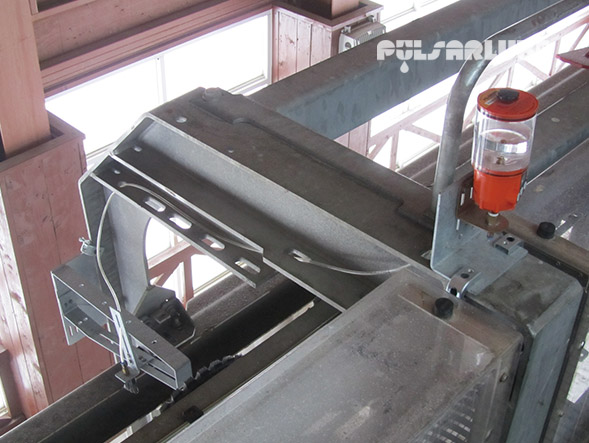

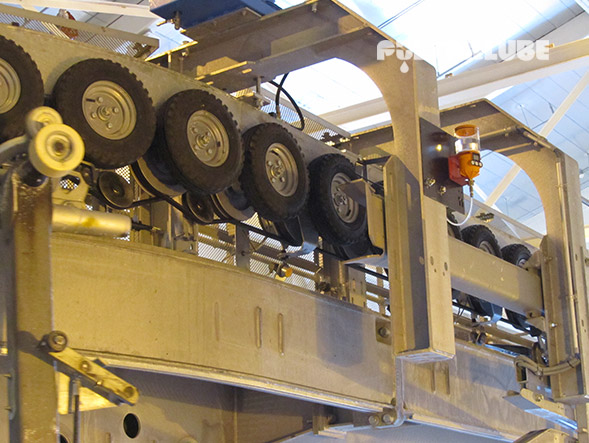

Industrial applications
Applications
Product advantages
Features
Refillable reservoir
The transparent 500ml oil reservoir can be refilled and visually inspected during maintenance.
Single or multi-point installation
Optional oil installation kits support a single remote point or up to four lubrication points.
LCD programming
Built-in LCD and button controls are used to select and review the dispensing setting.
Technical documentation
Product info
Internal construction
Cross section
Manufacturer-labelled internal components and lubricant-delivery construction.
Product specification
Specifications
| Spec | Description |
|---|---|
| Oil reservoir capacity | 500ml (refillable) |
| Power supply | DC 4.5V replaceable battery pack |
| Operating pressure | Up to 10bar (145psi), depending on oil viscosity |
| Operating temperature | Alkaline battery: -15°C to 60°C (5°F to 140°F) |
| Dispensing periods | H (15 days); 1, 2, 4, 6, 12, 18 or 24 months |
| Single-point remote installation | Maximum 6m (20ft) with O.D. Ø4 tube |
| Multi-point installation | Maximum 3m (10ft) per point with O.D. Ø4 tube; up to 4 lubrication points |
| Oil viscosity range | 10–10,000 cSt at 40°C; special installation instructions apply for 10–100 cSt at 40°C |
| Connecting thread | PT 3/8" male |
Safety and compliance
Certifications
Certification information is shown for technical reference. Arzen must confirm the exact model, market and supporting certificate before supply.
| Certification | Manufacturer-stated marking |
|---|---|
| CE | Manufacturer lists CE conformity for the OL500 range |
| IP code | IP54 shown in current manufacturer literature |
Oil-line adapters
| Part No. | Description |
|---|---|
| A002 | Reducer, 3/8"F × 1/8"M adaptor (brass) |
| A012 | Socket, 1/8"F × 1/8"F adaptor (brass) |
| C007 | Tube fitting, Ø4mm × PT1/8"M |
| C021-1 | O.D. Ø4mm clear nylon tubing |
Single-point remote installation
Kit No. 1250RO-1 — single-point remote installation
| Part No. | Description | Qty. |
|---|---|---|
| 1250RO-1 | Single-point remote installation kit for Pulsarlube OL | 1 |
| C021-1 | O.D. Ø4mm clear nylon tubing | As required |
| C007 | Tube fitting, Ø4mm × PT1/8"M | 2 |
The manufacturer lists a maximum 6m (20ft) remote run using O.D. Ø4 tubing. For oils below ISO VG100, follow the manual's low-viscosity layout and keep the lubricator below the lubrication point.

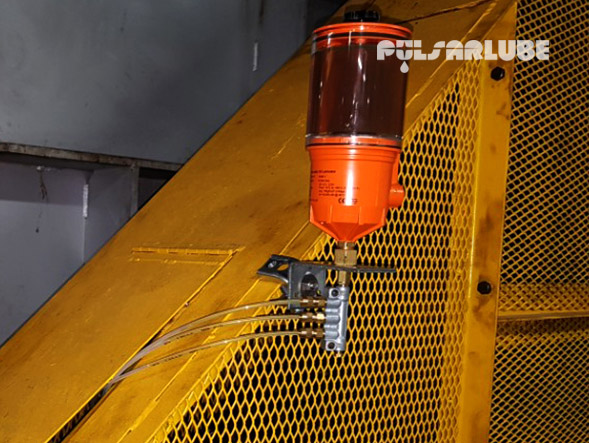

Multi-point installation
Kit No. 1250RO-2~4 — up to four oil points
| Part No. | Description | Qty. |
|---|---|---|
| 1250RO-2~4 | Oil distributor kit selected for 2, 3 or 4 points | 1 |
| C021-1 | O.D. Ø4mm clear nylon tubing | As required |
| C007 | Tube fitting, Ø4mm × PT1/8"M | Per point |
Use the designated oil distributor and installation kit. The manufacturer lists up to four lubrication points and a maximum 3m (10ft) O.D. Ø4 line per point; verify oil viscosity and line resistance before commissioning.
