High output pressure
30–60bar output supports properly engineered remote and multi-point lubrication arrangements.
Official manufacturer product visual · M60Pulsarlube / Electromechanical
Pulsarlube M
A reusable electromechanical automatic grease lubricator designed for precise delivery where backpressure, remote mounting or multi-point lubrication must be considered.
Series
M60: Ø91mm (3.60") × 181mm (7.13") H
Quick download
Product overview
High-pressure, reusable automatic lubrication.
Pulsarlube M combines a vertical self-priming pump, microprocessor control system and LCD display. The manufacturer positions it for applications where accurate lubricant delivery and higher line pressure are required.
Its replaceable Service Pack combines the grease pouch and battery-pack replacement cycle. Model, battery type, grease, dispensing period, mounting arrangement and line resistance must be selected together for reliable operation.

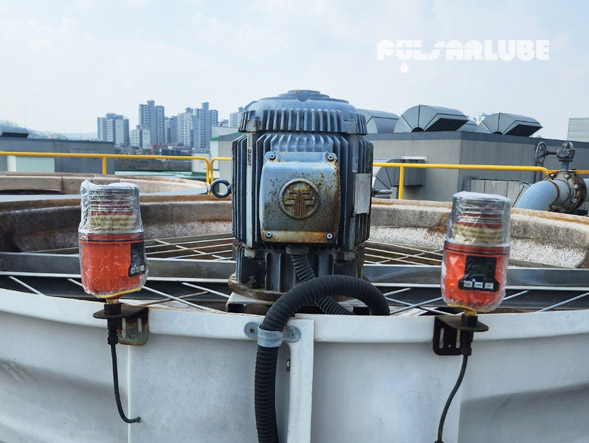

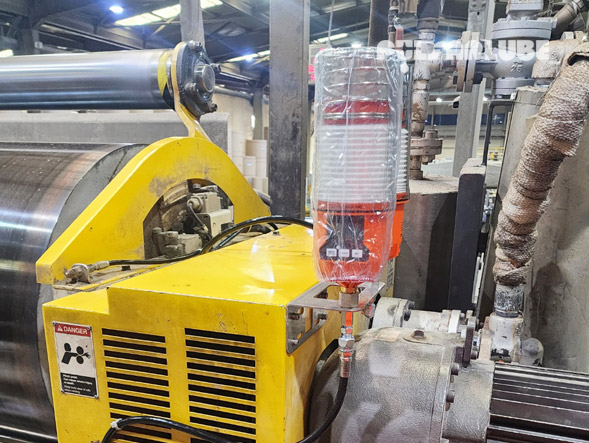

Industrial applications
Applications
Product advantages
Features
LCD programming
Built-in LCD and button controls display and manage the selected operating setting.
Low-temperature battery option
An optional lithium battery pack extends the stated operating range down to -40°C.
Replaceable Service Pack
Replaceable grease pouches and battery packs support reuse of the lubricator body.
Technical documentation
Product info
Internal construction
Cross section
Manufacturer-labelled internal components and lubricant-delivery construction.
Product specification
Specifications
| Spec | Description |
|---|---|
| Grease pouch capacity | 60ml / 125ml / 250ml / 500ml (replaceable) |
| Power supply | DC 4.5V replaceable battery pack; alkaline standard, lithium optional |
| Operating pressure | 30–60bar (435–870psi) |
| Operating temperature | Alkaline battery: -15°C to 60°C (5°F to 140°F); lithium battery: -40°C to 60°C (-40°F to 140°F) |
| Dispensing periods | 1–12 months |
| Single-point remote installation | Maximum 10m (33ft) with O.D. Ø6 tube |
| Multi-point installation | Maximum 6m (20ft) with O.D. Ø6 tube; up to 8 lubrication points |
| Connecting thread | PT 3/8" male |
| Ingress protection | IP65 |
Safety and compliance
Certifications
Certification information is shown for technical reference. Arzen must confirm the exact model, market and supporting certificate before supply.
| Certification | Manufacturer-stated marking |
|---|---|
| IP Code | IP65 |
| CE | Manufacturer lists CE conformity for the Pulsarlube M range. |
| KC | R-R-kLT-M250 |
| FCC | KES-EM-21T00810 |
| RoHS | RE-P-210317-1-019 |
Reducer
| Part No. | Description |
|---|---|
| A001 | Reducer, 3/8"F x 1/4"M Adaptor (Brass) |
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| A002-S | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
Socket + Pipe + Reducer
| Part No. | Description |
|---|---|
| A011 | Socket, 1/4"F x 1/4"F Adaptor (Brass) |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (Brass) |
| A121 | Pipe, 1/4"M x 1/4"M x 50mm (Steel) |
| A122 | Pipe, 1/4"M x 1/4"M x 100mm (Steel) |
| A123 | Pipe, 1/4"M x 1/4"M x 150mm (Steel) |
| A124 | Pipe, 1/4"M x 1/4"M x 200mm (Steel) |
| A106 | Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel) |
| A107 | Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel) |
| A108 | Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel) |
| A109 | Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel) |
45° Elbow
| Part No. | Description |
|---|---|
| A023 | 45° Elbow, 1/4"M x 1/4"F Adaptor (Brass) |
| A024 | 45° Elbow, 1/8"M x 1/8"F Adaptor (Brass) |
90° Elbow
| Part No. | Description |
|---|---|
| A019 | 90° Elbow, 1/4"F x 1/4"F Adaptor (Brass) |
| A020 | 90° Elbow, 1/8"F x 1/8"F Adaptor (Brass) |
| A021 | 90° Elbow, 1/4"M x 1/4"F Adaptor (Brass) |
| A022 | 90° Elbow, 1/8"M x 1/8"F Adaptor (Brass) |

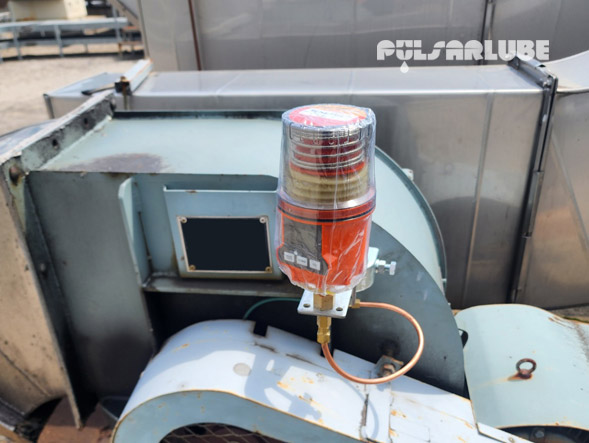

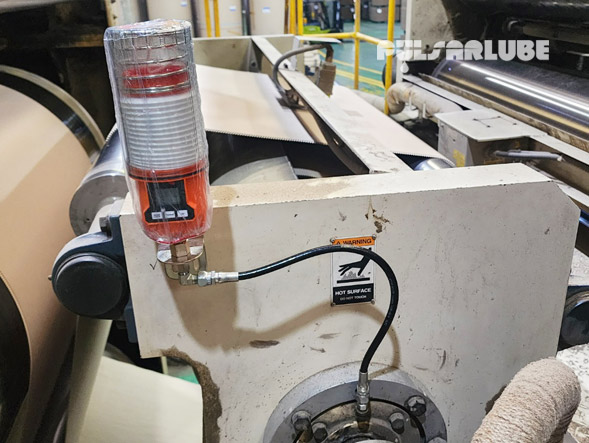

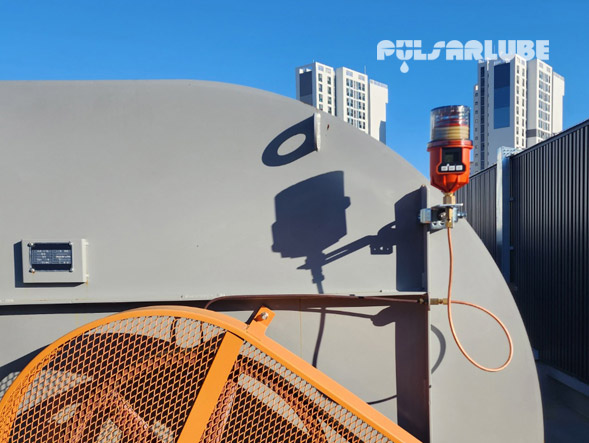

Single-point remote installation
Kit No. 1250RC-1
| Part No. | Description |
|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| B002 | Mounting Bracket, L-Shape |
| B051 | Self Drilling Screw, #8 x 20 |
| B057 | Washer |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (Brass) |
| A240 | Tube Fitting, Push-In Type, PC6-PT1/8"M |
| A214-1 | Distribution Tubing, O.D. 1/4" (6mm) Nylon Tubing, 10ft, pre-filled with compatible grease |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (Brass) |
The current manufacturer specification lists O.D. Ø6 tubing for remote installation. Prefill the tube with the same or a compatible grease and confirm the permitted distance for the chosen model, battery and operating conditions.
Multi-point installation
Electromechanical divider-block installation — up to 8 points
| Part No. | Description | Qty. |
|---|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) | 1 |
| B002 | Mounting Bracket, L-Shape | 1 |
| B051 | Self Drilling Screw, #8 x 20 | 1 |
| DU-2RS–DU-8RS | DU Type Divider Block, grease type, 2–8 ports | 1 |
| B058 | Tooth Washer | 2 |
| A240 | Tube Fitting, Push-In Type, PC6-PT1/8"M | 3 |
| A214-1 | Distribution Tubing, O.D. 1/4" (6mm) Nylon Tubing, 10ft, pre-filled with compatible grease | 1 |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (Brass) | 1 |
Use a compatible progressive divider block with no unused ports plugged. The manufacturer lists up to 8 lubrication points and a maximum 6m (20ft) line with O.D. Ø6 tubing; verify backpressure before commissioning.
