Easy maintenance
The transparent container supports visual inspection of remaining oil and the selected dispensing period.
Official manufacturer product visual · EO60Pulsarlube / Oiler
Pulsarlube EO
A compact disposable gas-operated automatic oiler with a non-return valve for controlled single-point oil delivery.
Series
EO60: Ø77mm (3.03") × 91mm (3.58") H
Quick download
Product overview
Compact electrochemical oil delivery for a single lubrication point.
Pulsarlube EO uses nitrogen-gas generation and a non-return valve to dispense oil from a transparent reservoir. It is offered in 60ml, 120ml and 240ml capacities with selectable 1, 3, 6, 9 or 12-month settings.
EO is designed for direct or single-point remote installation only. The manual notes a possible startup delay and gives a specific mounting arrangement for oils below ISO VG100; oil viscosity, mounting position and line length must therefore be checked before use.

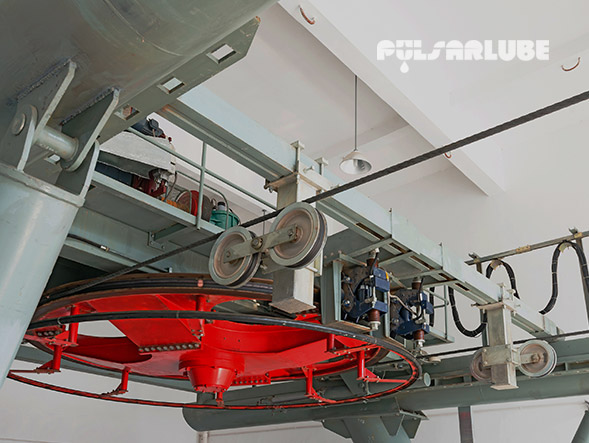

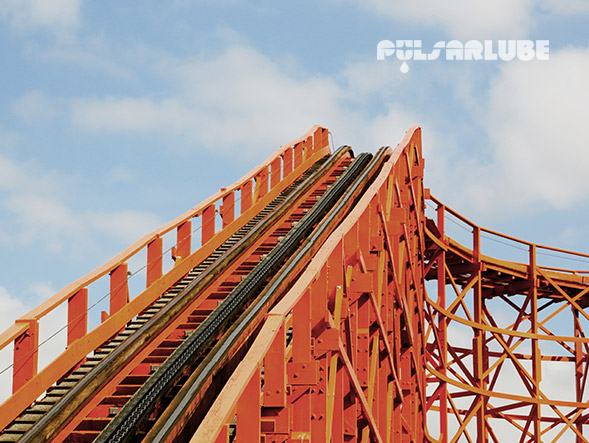

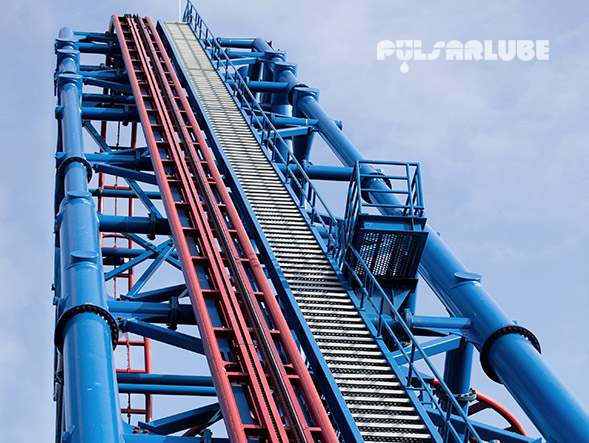

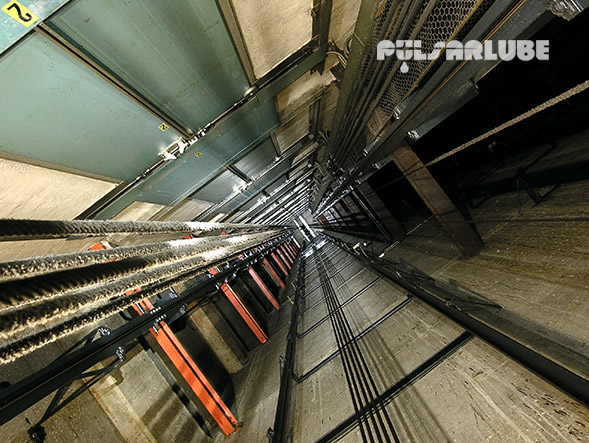

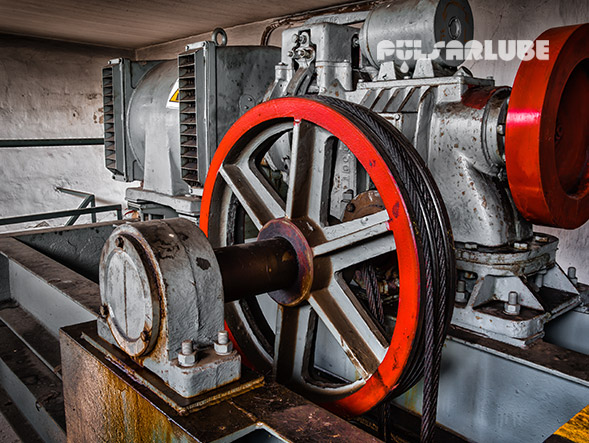

Industrial applications
Applications
Product advantages
Features
Vibration durability
The manufacturer positions the EO design for demanding industrial locations subject to vibration.
Compact design
The 60ml model is intended for confined locations where installation space is limited.
Separable disposal
Applicable components can be separated for disposal after the disposable unit completes its service cycle.
Technical documentation
Product info
Internal construction
Cross section
Manufacturer-labelled internal components and lubricant-delivery construction.
Product specification
Specifications
| Spec | Description |
|---|---|
| Oil reservoir capacity | 60ml / 120ml / 240ml (disposable) |
| Operating method | Electrochemical nitrogen-gas generation with non-return valve |
| Operating pressure | Maximum 5bar (73psi) |
| Operating temperature | -20°C to 55°C (-4°F to 131°F) |
| Dispensing periods | 1, 3, 6, 9 or 12 months |
| Single-point remote installation | Maximum 3m (10ft) with O.D. Ø4 tube |
| Multi-point installation | Not applicable |
| Oil viscosity range | 10–10,000 cSt at 40°C; special installation instructions apply for 10–100 cSt at 40°C |
| Connecting thread | PT/NPT 1/4" male |
Safety and compliance
Certifications
Certification information is shown for technical reference. Arzen must confirm the exact model, market and supporting certificate before supply.
| Certification | Manufacturer-stated marking |
|---|---|
| ATEX | Manufacturer lists ATEX certification for the EO range |
| UL | Manufacturer lists UL certification for the EO range |
| IECEx | Manufacturer lists IECEx certification for the EO range |
| KCs | Manufacturer lists KCs certification for the EO range |
| CE | Manufacturer lists CE conformity for the EO range |
| MSHA | Manufacturer lists MSHA certification for the EO range |
Direct-mount adapters
| Part No. | Description |
|---|---|
| A001 | Reducer, 3/8"F × 1/4"M adaptor (brass) |
| A011 | Socket, 1/4"F × 1/4"F adaptor (brass) |
| A021 | 90° elbow, 1/4"M × 1/4"F adaptor (brass) |
Single-point remote installation
EO single-point remote installation
| Part No. | Description | Qty. |
|---|---|---|
| Ø4 tube | O.D. Ø4mm oil-compatible remote tubing | Maximum 3m |
| Tube fittings | Fittings selected for EO and the lubrication point thread | 2 |
The manufacturer lists a maximum 3m (10ft) remote run using O.D. Ø4 tubing. Keep line backpressure below 5bar and follow the manual's mounting arrangement for oils below ISO VG100.
Related solutions
Back to catalogue →Continue product discovery.
Oiler
OilerProduct enquiry
Request a Pulsarlube EO quotation.
Share the required model, quantity, application, operating temperature and installation conditions to begin a technical discussion.
Pulsarlube EOOiler
Available models: EO60 · EO120 · EO240
Start your enquiry →View manufacturer product information ↗
Installation notes
