Vibration sensor
A piezoelectric detector allows the unit to lubricate only while the application is operating.
Official manufacturer product visual · Mi60Pulsarlube / Advanced Features
Pulsarlube Mi
A vibration-synchronised automatic grease lubricator that dispenses while the monitored machine is operating, without an external machine-control cable.
Series
Mi60: Ø91mm (3.60") × 181mm (7.13") H
Quick download
Product overview
Machine synchronisation through vibration sensing.
Pulsarlube Mi uses a piezoelectric vibration detector to check the operating state of rotating equipment. When the configured vibration is detected, the unit dispenses in line with machine operation; when vibration is absent, it enters standby to help avoid over-lubrication.
The magnetic detector must be mounted and adjusted correctly for the actual machine. Sensor position, sensitivity, lubricant, battery type, dispensing period, remote distance and line backpressure must be verified during installation.

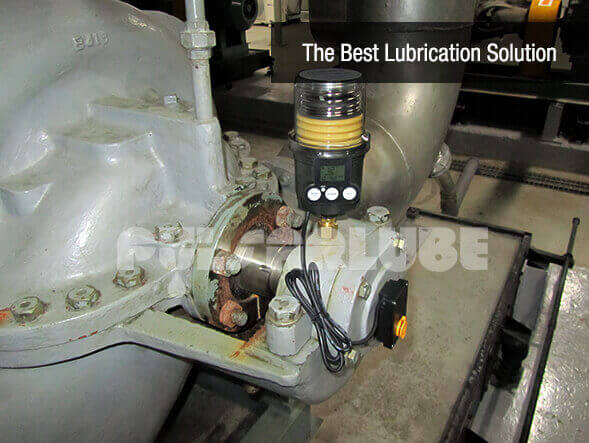

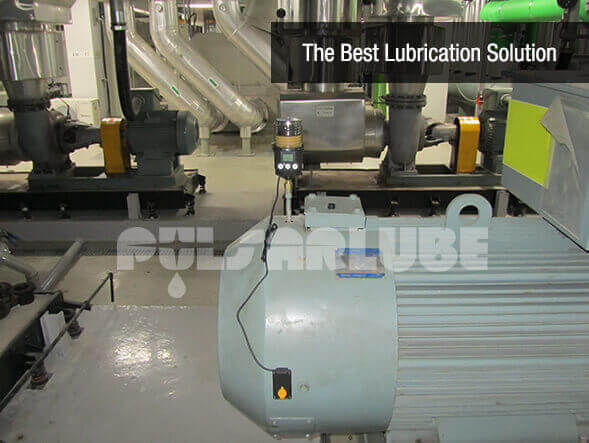

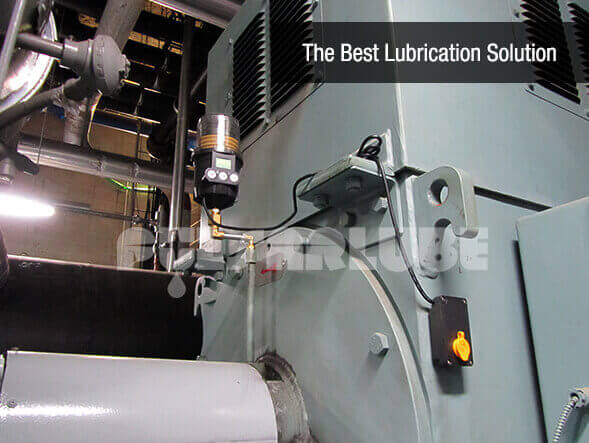

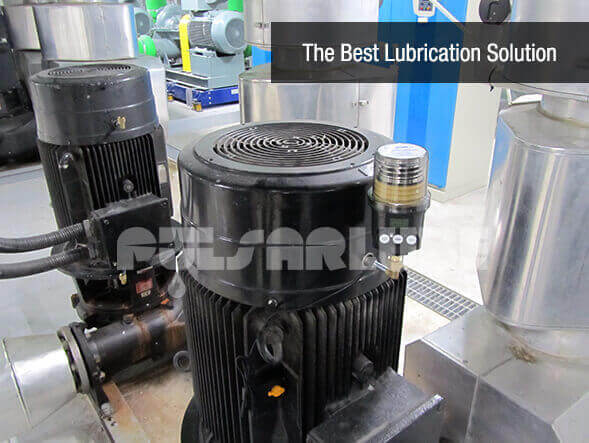

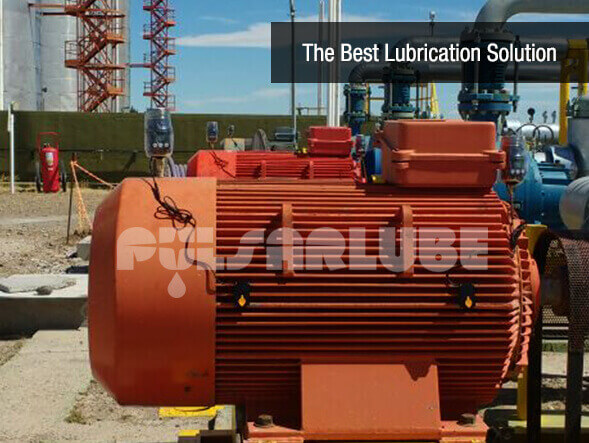

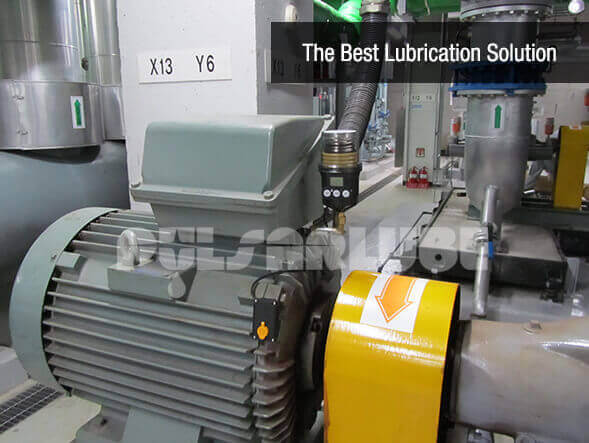

Industrial applications
Applications
Product advantages
Features
Simple and precise
Controls are designed for straightforward operation and measured lubricant delivery.
No external control wiring
Machine operation is detected by vibration, so no wiring to the motor or machine-control power is required.
Replaceable Service Pack
Replaceable grease pouches and battery packs support reuse of the lubricator body.
Technical documentation
Product info
Internal construction
Cross section
Manufacturer-labelled internal components and lubricant-delivery construction.
Product specification
Specifications
| Spec | Description |
|---|---|
| Grease pouch capacity | 60ml / 125ml / 250ml (replaceable; capacity selection available) |
| Power supply | DC 4.5V replaceable battery pack; alkaline standard, lithium optional |
| Operating pressure | 30–60bar (435–870psi) |
| Operating temperature | Alkaline battery: -15°C to 60°C (5°F to 140°F); lithium battery: -40°C to 60°C (-40°F to 140°F) |
| Dispensing periods | 1–12 months |
| Single-point remote installation | Maximum 1m (3.3ft) with O.D. Ø6 tube |
| Multi-point installation | Maximum 1m (3.3ft) with O.D. Ø6 tube; up to 2 lubrication points |
| Vibration detector | Piezoelectric cantilever-type film sensor with adjustable sensitivity |
| Sensor wiring | 150mm to lubricator; 1.2m (4ft) sensor cable |
| Connecting thread | PT 3/8" male |
| Packaging | 10 units per case |
Safety and compliance
Certifications
Certification information is shown for technical reference. Arzen must confirm the exact model, market and supporting certificate before supply.
| Certification | Manufacturer-stated marking |
|---|---|
| CE | TA 385-17-2671 |
| KC | MSIP-REM-KLT-MI250 |
Reducer
| Part No. | Description |
|---|---|
| A001 | Reducer, 3/8"F x 1/4"M Adaptor (Brass) |
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| A002-S | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
Socket + Pipe + Reducer
| Part No. | Description |
|---|---|
| A011 | Socket, 1/4"F x 1/4"F Adaptor (Brass) |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (Brass) |
| A121 | Pipe, 1/4"M x 1/4"M x 50mm (Steel) |
| A122 | Pipe, 1/4"M x 1/4"M x 100mm (Steel) |
| A123 | Pipe, 1/4"M x 1/4"M x 150mm (Steel) |
| A124 | Pipe, 1/4"M x 1/4"M x 200mm (Steel) |
| A106 | Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel) |
| A107 | Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel) |
| A108 | Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel) |
| A109 | Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel) |
45° Elbow
| Part No. | Description |
|---|---|
| A023 | 45° Elbow, 1/4"M x 1/4"F Adaptor (Brass) |
| A024 | 45° Elbow, 1/8"M x 1/8"F Adaptor (Brass) |
90° Elbow
| Part No. | Description |
|---|---|
| A019 | 90° Elbow, 1/4"F x 1/4"F Adaptor (Brass) |
| A020 | 90° Elbow, 1/8"F x 1/8"F Adaptor (Brass) |
| A021 | 90° Elbow, 1/4"M x 1/4"F Adaptor (Brass) |
| A022 | 90° Elbow, 1/8"M x 1/8"F Adaptor (Brass) |
Single-point remote installation
Kit No. 1250RC-1
| Part No. | Description |
|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| B002 | Mounting Bracket, L-Shape |
| B051 | Self Drilling Screw, #8 x 20 |
| B057 | Washer |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (Brass) |
| A240 | Tube Fitting, Push-In Type, PC6-PT1/8"M |
| A214-1 | Distribution Tubing, O.D. 1/4" (6mm) Nylon Tubing, 10ft, pre-filled with compatible grease |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (Brass) |
The manufacturer lists a maximum 1m (3.3ft) remote run using O.D. Ø6 tubing. Prefill the line with the same or a compatible grease and confirm that the machine's vibration reaches the correctly positioned detector.
Multi-point installation
Electromechanical divider-block installation — up to 2 points
| Part No. | Description | Qty. |
|---|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) | 1 |
| B002 | Mounting Bracket, L-Shape | 1 |
| B051 | Self Drilling Screw, #8 x 20 | 1 |
| DU-2RS | DU Type Divider Block, grease type, 2 ports | 1 |
| B058 | Tooth Washer | 2 |
| A240 | Tube Fitting, Push-In Type, PC6-PT1/8"M | 3 |
| A214-1 | Distribution Tubing, O.D. 1/4" (6mm) Nylon Tubing, 10ft, pre-filled with compatible grease | 1 |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (Brass) | 1 |
Mi is limited to a two-point arrangement: maximum 1m (3.3ft) with O.D. Ø6 tubing and a compatible 2-port divider block. Do not extend this layout to the 8-point configuration used by other electromechanical models.
Related solutions
Back to catalogue →Continue product discovery.
Advanced Features
Advanced Features
Advanced FeaturesProduct enquiry
Request a Pulsarlube Mi quotation.
Share the required model, quantity, application, operating temperature and installation conditions to begin a technical discussion.
Pulsarlube MiAdvanced Features
Available models: Mi60 · Mi125 · Mi250
Start your enquiry →View manufacturer product information ↗
Installation notes
