Upward piston design
The bottom-mounted spring and upward piston movement are designed to reduce oil separation and grease hardening.
Official manufacturer product visual · S100Pulsarlube / Spring
Pulsarlube S
A refillable 100ml spring-operated grease lubricator for simple direct-mount, single-point applications without electrical power.
Series
S100: Ø67mm (2.64") × 129mm (5.08") H
Quick download
Product overview
Spring-driven lubrication designed to reduce oil separation.
Pulsarlube S places the spring below the lubricant chamber and moves the piston upward. The manufacturer states that this arrangement reduces the oil separation and grease hardening associated with conventional spring-type lubricators.
The S100 is refillable through its grease nipple and uses a control knob with five dispensing settings. It is intended for direct mounting only: remote and multi-point installations are not listed for this product.

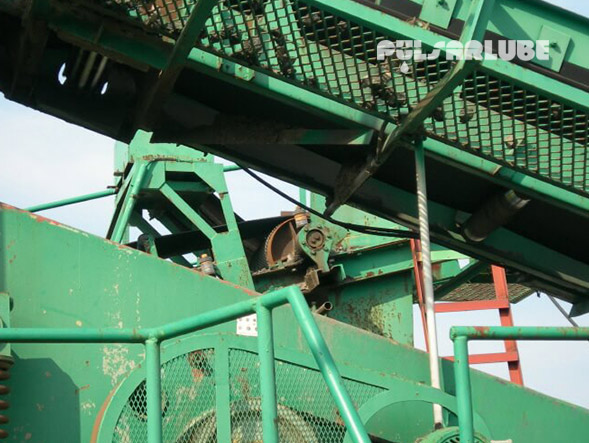

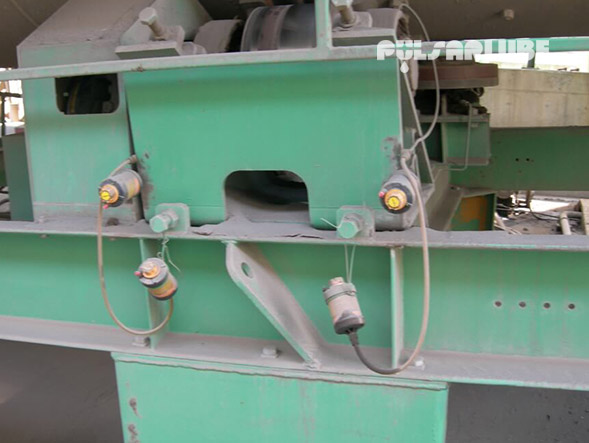

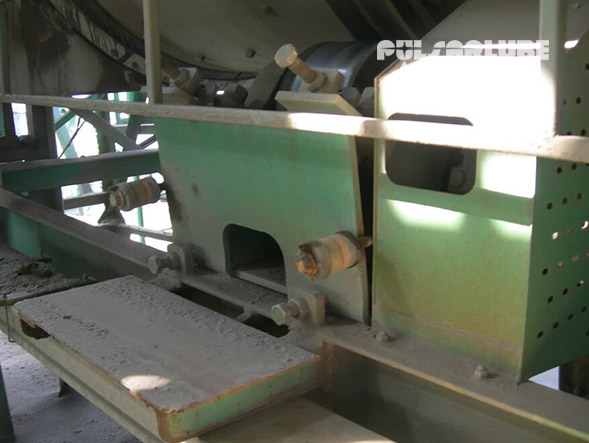

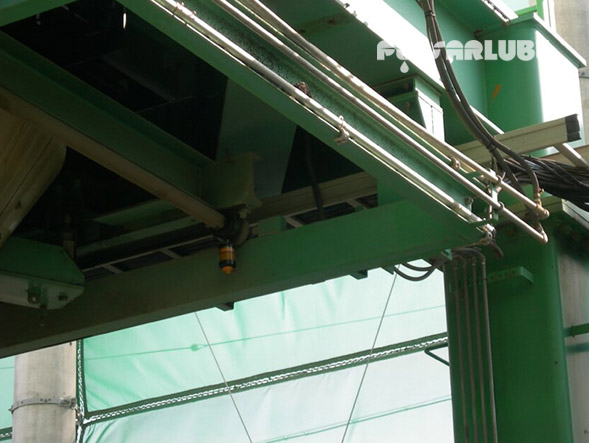

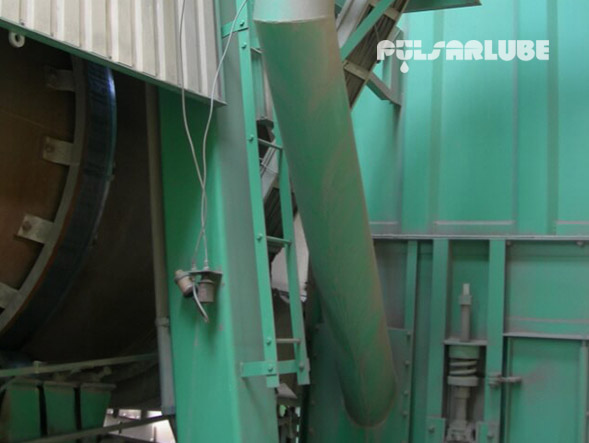

Industrial applications
Applications
Product advantages
Features
Easy on-site refill
The 100ml lubricant chamber can be refilled through the integrated grease nipple.
Five-setting control knob
The dispensing rate is adjusted mechanically through five control-knob settings.
Available pre-filled
Strategically placed piston clamps allow the unit to be supplied pre-filled for installation.
Technical documentation
Product info
Internal construction
Cross section
Manufacturer-labelled internal components and lubricant-delivery construction.
Product specification
Specifications
| Spec | Description |
|---|---|
| Grease capacity | 100ml (refillable) |
| Operating method | Mechanical spring with upward piston movement |
| Power supply | Not required |
| Operating pressure | N/A in current manufacturer literature |
| Operating temperature | -20°C to 100°C (-4°F to 212°F) |
| Dispensing control | Five dial settings |
| Single-point remote installation | Not applicable |
| Multi-point installation | Not applicable |
| Compatible thread | PT/NPT 1/4" male |
| Product dimensions | Ø67mm (2.64") × 129mm (5.08") H |
Reducer
| Part No. | Description |
|---|---|
| A001 | Reducer, 3/8"F × 1/4"M adaptor (brass) |
| A003 | Reducer, 1/4"F × 1/8"M adaptor (brass) |
Socket, pipe and reducer
| Part No. | Description |
|---|---|
| A011 | Socket, 1/4"F × 1/4"F adaptor (brass) |
| A121 | Pipe, 1/4"M × 1/4"M × 50mm (steel) |
| A122 | Pipe, 1/4"M × 1/4"M × 100mm (steel) |
45° elbow
| Part No. | Description |
|---|---|
| A023 | 45° elbow, 1/4"M × 1/4"F adaptor (brass) |
90° elbow
| Part No. | Description |
|---|---|
| A019 | 90° elbow, 1/4"F × 1/4"F adaptor (brass) |
| A021 | 90° elbow, 1/4"M × 1/4"F adaptor (brass) |
Product enquiry
Request a Pulsarlube S quotation.
Share the required model, quantity, application, operating temperature and installation conditions to begin a technical discussion.
Installation notes
