PLC control
Programmed to deliver lubricant when the appropriate operation signal is received from the PLC.
Official manufacturer product visual · PLC60Pulsarlube / Advanced Features
Pulsarlube PLC
An externally powered automatic grease lubricator designed for integration with a compatible PLC using MONTH or INTERVAL control.
Series
PLC60: Ø91mm (3.60") × 181mm (7.13") H
Quick download
Product overview
PLC-integrated lubrication with status and alarm signalling.
Pulsarlube PLC is designed to operate as part of a compatible PLC-controlled machine. MONTH type calculates dispensing by the lubricator and dispenses while the machine is operating; INTERVAL type receives the timing command from the PLC and discharges the selected multiple of its base stroke.
The range is offered with PNP or NPN input/output configurations and can signal warning conditions to an external alarm. Voltage, control type, signal type, wiring, dispensing logic, grease, capacity and installation layout must all be confirmed before ordering or commissioning.

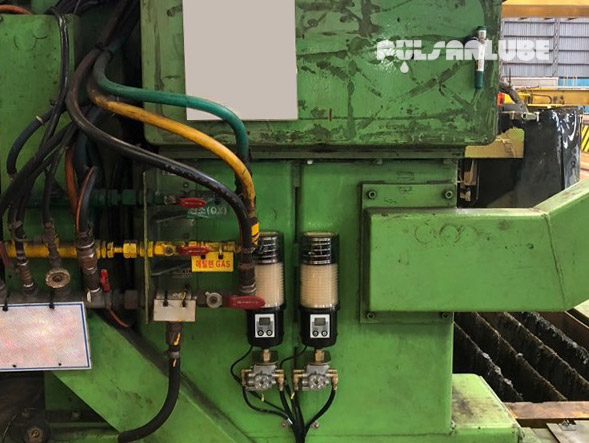

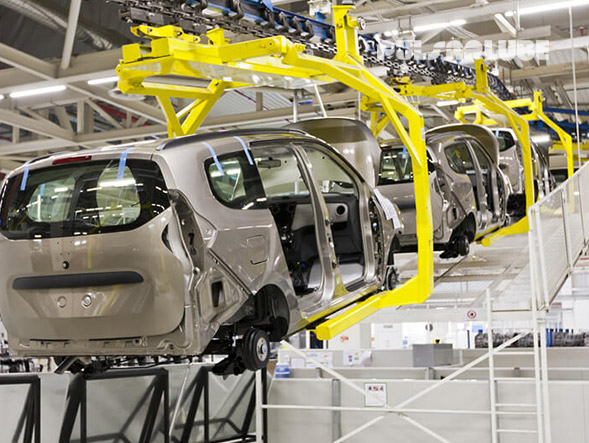

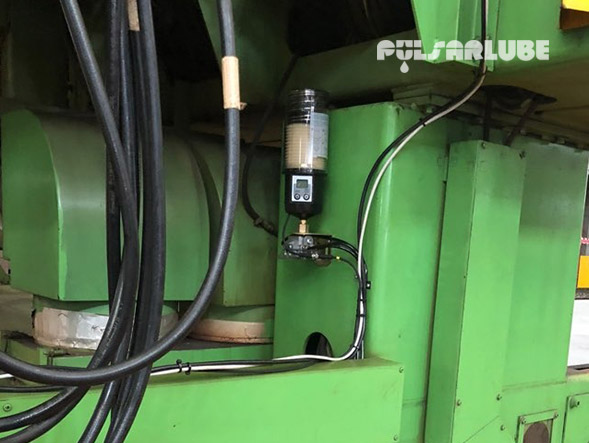

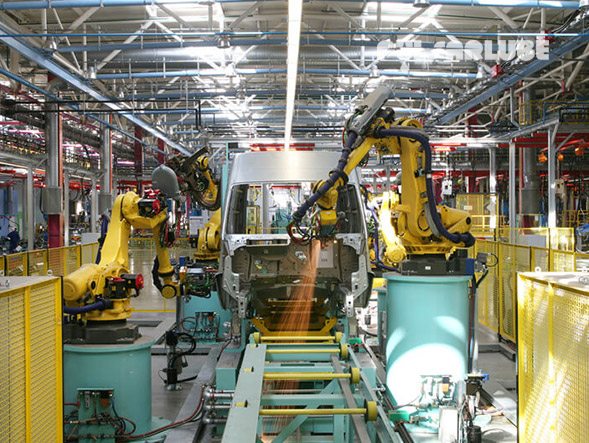

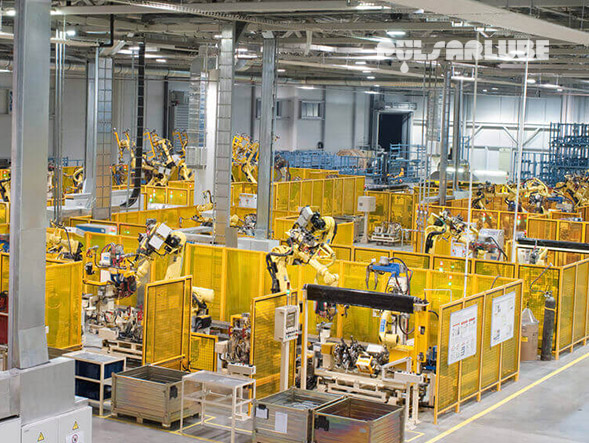

Industrial applications
Applications
Product advantages
Features
PNP or NPN configuration
Both PNP and NPN connection versions are available and must be selected for the control system.
Alarm communication
The unit can send a signal to an external alarm for warning conditions such as excessive backpressure or cycle completion.
MONTH or INTERVAL type
MONTH type uses the selected monthly setting; INTERVAL type dispenses the selected rate when commanded by the PLC.
Replaceable Service Pack
Replaceable grease pouches support reuse of the lubricator body; no operating battery is required.
Technical documentation
Product info
Internal construction
Cross section
Manufacturer-labelled internal components and lubricant-delivery construction.
Product specification
Specifications
| Spec | Description |
|---|---|
| Grease pouch capacity | 60ml / 120ml / 240ml / 480ml (pre-set) |
| Power supply | External 9–36V DC; no operating battery required |
| Operating pressure | 30–60bar (435–870psi) |
| Operating temperature | -20°C to 60°C (-4°F to 140°F) |
| Dispensing periods | MONTH type: 1–12 months; INTERVAL type: modes 1–6 |
| Dispensing volume at 20°C | MONTH type: 0.34ml per stroke; INTERVAL type: 0.34ml × selected mode; purge mode: 2ml (6 strokes) |
| Single-point remote installation | Maximum 10m (33ft) with O.D. Ø6 tube |
| Multi-point installation | Maximum 6m (20ft) with O.D. Ø6 tube; up to 8 lubrication points |
| PLC input/output | Available in PNP or NPN; MONTH or INTERVAL signal type must be selected when ordering |
| Alarm output | Maximum 1A |
| Cable | 150mm to lubricator; additional connecting wires available separately |
| Connecting thread | PT 3/8" male |
| Ingress protection | IP65 |
| Packaging | 10 units per case |
Safety and compliance
Certifications
Certification information is shown for technical reference. Arzen must confirm the exact model, market and supporting certificate before supply.
| Certification | Manufacturer-stated marking |
|---|---|
| IP code | IP65 |
| CE | EN 61000-6-4:2007/A1:2011; EN 61000-6-2:2005 |
| KC | MSIP-REM-KLT-PLC480 |
Reducer
| Part No. | Description |
|---|---|
| A001 | Reducer, 3/8"F x 1/4"M Adaptor (Brass) |
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| A002-S | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
Socket + Pipe + Reducer
| Part No. | Description |
|---|---|
| A011 | Socket, 1/4"F x 1/4"F Adaptor (Brass) |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (Brass) |
| A121 | Pipe, 1/4"M x 1/4"M x 50mm (Steel) |
| A122 | Pipe, 1/4"M x 1/4"M x 100mm (Steel) |
| A123 | Pipe, 1/4"M x 1/4"M x 150mm (Steel) |
| A124 | Pipe, 1/4"M x 1/4"M x 200mm (Steel) |
| A106 | Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel) |
| A107 | Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel) |
| A108 | Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel) |
| A109 | Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel) |
45° Elbow
| Part No. | Description |
|---|---|
| A023 | 45° Elbow, 1/4"M x 1/4"F Adaptor (Brass) |
| A024 | 45° Elbow, 1/8"M x 1/8"F Adaptor (Brass) |
90° Elbow
| Part No. | Description |
|---|---|
| A019 | 90° Elbow, 1/4"F x 1/4"F Adaptor (Brass) |
| A020 | 90° Elbow, 1/8"F x 1/8"F Adaptor (Brass) |
| A021 | 90° Elbow, 1/4"M x 1/4"F Adaptor (Brass) |
| A022 | 90° Elbow, 1/8"M x 1/8"F Adaptor (Brass) |
Single-point remote installation
Kit No. 1250RC-1
| Part No. | Description |
|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| B002 | Mounting Bracket, L-Shape |
| B051 | Self Drilling Screw, #8 x 20 |
| B057 | Washer |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (Brass) |
| A240 | Tube Fitting, Push-In Type, PC6-PT1/8"M |
| A214-1 | Distribution Tubing, O.D. 1/4" (6mm) Nylon Tubing, 10ft, pre-filled with compatible grease |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (Brass) |
The manufacturer lists a maximum 10m (33ft) remote run using O.D. Ø6 tubing. Prefill the tube with the same or a compatible grease, and verify the PLC power, signal and alarm wiring before commissioning.
Multi-point installation
Electromechanical divider-block installation — up to 8 points
| Part No. | Description | Qty. |
|---|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) | 1 |
| B002 | Mounting Bracket, L-Shape | 1 |
| B051 | Self Drilling Screw, #8 x 20 | 1 |
| DU-2RS–DU-8RS | DU Type Divider Block, grease type, 2–8 ports | 1 |
| B058 | Tooth Washer | 2 |
| A240 | Tube Fitting, Push-In Type, PC6-PT1/8"M | 3 |
| A214-1 | Distribution Tubing, O.D. 1/4" (6mm) Nylon Tubing, 10ft, pre-filled with compatible grease | 1 |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (Brass) | 1 |
Use a compatible progressive divider block with no unused ports plugged. The manufacturer lists up to 8 lubrication points and a maximum 6m (20ft) run with O.D. Ø6 tubing; verify backpressure and PLC logic before commissioning.
