Compact Design
Compact 60ml design is convenient for usage in confined spaces
Official manufacturer product visual · E60Pulsarlube / Electrochemical
Pulsarlube E
The Pulsarlube E is our smallest lubricator which can easily be installed in confined areas with limited space. This eco-friendly product is recyclable.
Series
E60: Ø77mm(3.03") x 91mm(3.58") (H)
Quick download
Product overview
Automatic lubrication, precisely delivered.
The Pulsarlube E is designed to offer superior advantages in cost competitiveness and user friendliness over conventional gas type SPL units. The Pulsarlube E has a creative and innovative design which satisfies a wide variety of demands for industrial applications. It operates based on the proven technology of electrochemical reaction which generates inert Nitrogen (N2) gas through the systematic use of an electrolyte and electrical energy.
The Pulsarlube E utilizes an intuitive mode selecting mechanism to ensure an error-free and simple operation. This product is the right choice for a cost effective, reliable, and safe SPL product for most industrial applications.

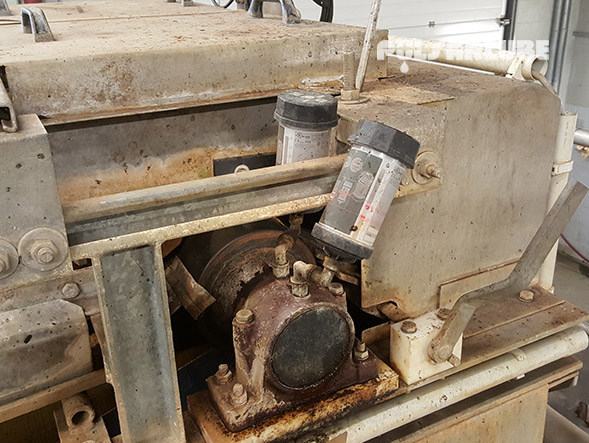

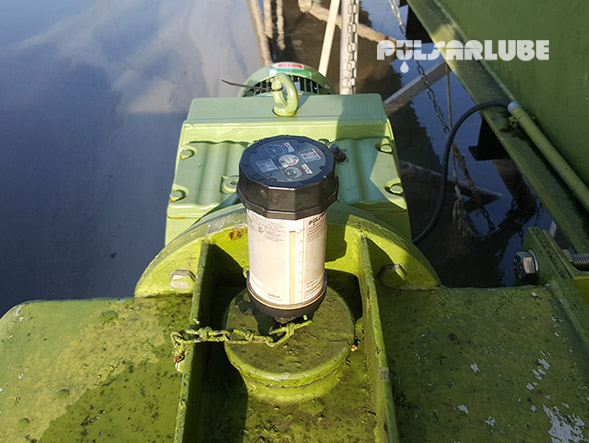

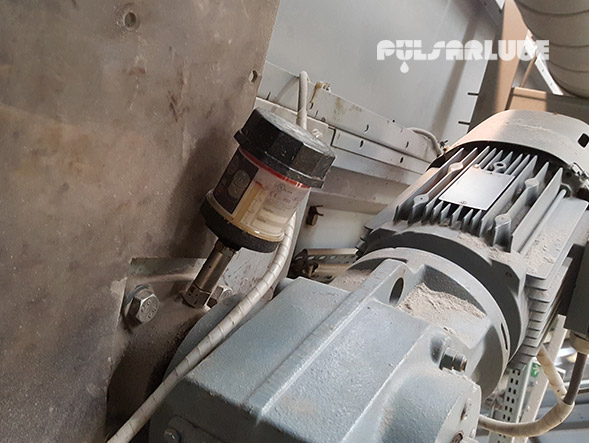

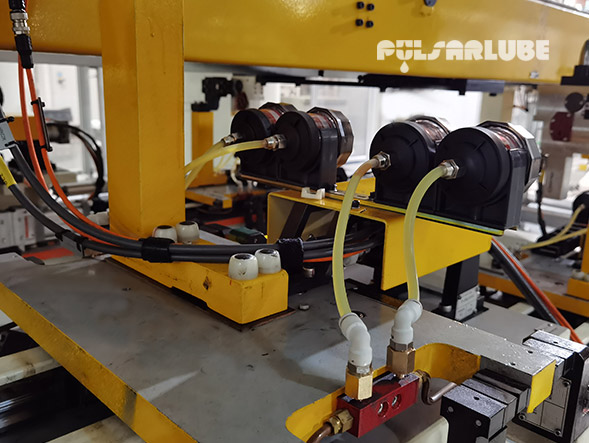

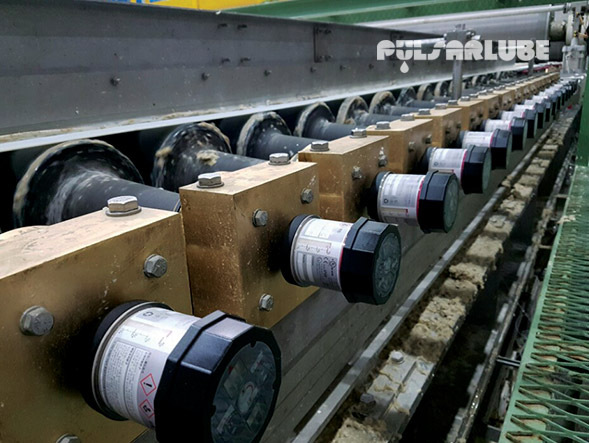

Industrial applications
Applications
Product advantages
Features
Durability
Specially designed to endure high vibration
Easy Maintenance
Transparent container and cap for easy visual inspection of remaining lubricant and dispensing periods
Eco-Friendly
Eco-friendly product where applicable parts can be disposed of separately
Technical documentation
Product info
Internal construction
Cross section
Explore the manufacturer’s labelled internal components and lubricant-delivery construction.
Product specification
Specifications
| Spec | Description |
|---|---|
| Grease Pouch Capacity | 60ml/120ml/240ml (disposable) |
| Gas Type | Electrochemical reaction (Nitrogen gas) |
| Operating Pressure | Max. 5bar (73psi) |
| Operating Temperature | -20˚C~55˚C (-4˚F~131˚F) |
| Dispensing Periods | 1, 3, 6, 9, 12 month |
| Remote Installation | Max. 1m (3.3ft) with O.D. Ø8 tube |
| Multi-Point Installation | N/A |
| Packaging | 10 Units/Case |
Safety and compliance
Certifications
| Certification | Description | Document |
|---|---|---|
| IP Code | IP68 | Download ↗ |
| ATEX | Ⅱ 1 G / ia ⅡC T4 Ga | Download ↗ |
| UL | Cl.Ⅰ, Div. 1, Gps A, B, C, D Cl. II, Div. 1 ,Gps E, F ,G | Download ↗ |
| IECEX | ia ⅡC T4 Ga | Download ↗ |
| KCs | ia ⅡC T4 | Download ↗ |
| MSHA | Approval No. 18-A180003-0 | Not supplied |
| CE / Etc. | CE 0344 | Not supplied |
Reducer
| Part No. | Description |
|---|---|
| A001 | Reducer, 3/8"F x 1/4"M Adaptor (Brass) |
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| A003 | Reducer, 3/8"F x 1/8"M Adaptor (Steel) |
Socket + Pipe + Reducer
| Part No. | Description |
|---|---|
| A011 | Socket, 1/4"F x 1/4"F Adaptor (Brass) |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (Brass) |
| A121 | Pipe,1/4”M x 1/4”M x 50mm (Steel) |
| A122 | Pipe,1/4”M x 1/4”M x 100mm (Steel) |
| A123 | Pipe,1/4”M x 1/4”M x 150mm (Steel) |
| A124 | Pipe,1/4”M x 1/4”M x 200mm (Steel) |
| A106 | Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel) |
| A107 | Pipe, 1/8"M x 1/8"M x 150mm for divider Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel) |
| A108 | Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel) |
| A109 | Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel) |
45° Elbow
| Part No. | Description |
|---|---|
| A023 | 45° Elbow, 1/4”M x 1/4”F Adaptor (Brass) |
| A024 | 45° Elbow, 1/8”M x 1/8”F Adaptor (Brass) |
90° Elbow
| Part No. | Description |
|---|---|
| A019 | 90° Elbow, 1/4”F x 1/4”F Adaptor (Brass) |
| A020 | 90° Elbow, 1/8”F x 1/8”F Adaptor (Brass) |
| A021 | 90° Elbow, 1/4”M x 1/4”F Adaptor (Brass) |
| A022 | 90° Elbow, 1/8”M x 1/8”F Adaptor (Brass) |
Single point remote installation
Kit No. 2000RC-1
| Part No. | Description |
|---|---|
| A005 | Reducer, 1/4"F x 1/8" M Adaptor (Brass) |
| B002 | Mounting Bracket, “L”Shape |
| B051 | Self Drilling Screw, #8 x 20 |
| B057 | Washer |
| A012 | Socket, 1/8”F x 1/8”F Adaptor (Brass) |
| A239 | Tube Fitting, Push-In Type, PC8-PT1/8"M |
| A212-1 | Distribution Tubing, O.D. 5/16"(8mm) Urethan Tubing, 3ft Pre-filled with (Grease Type) |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (Brass) |
For remote installation using a tube, use an 8mm O.D. (5/16″) tubing pre-filled with the same or compatible grease as the grease contained in the unit. Recommend using under short dispensing period settings due to powerful dispensing pressure.
